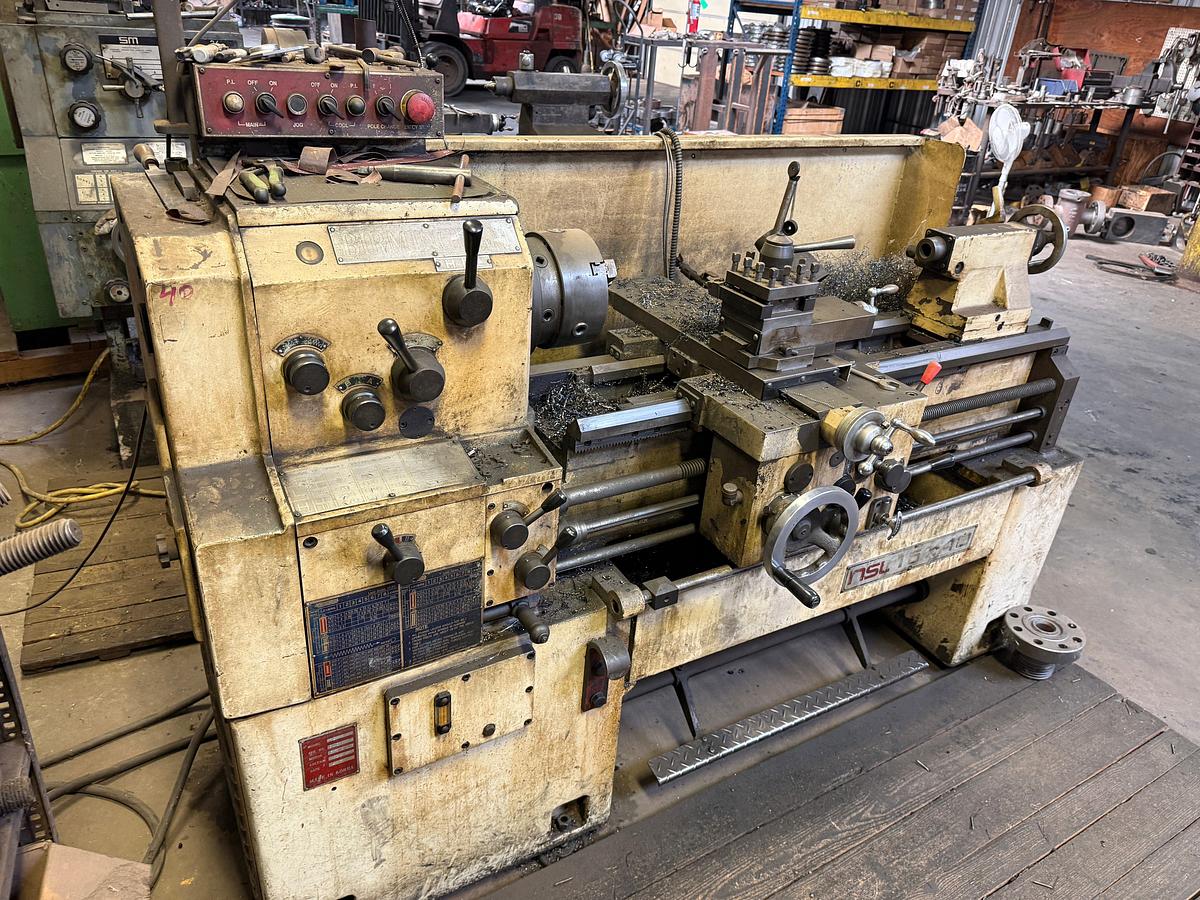

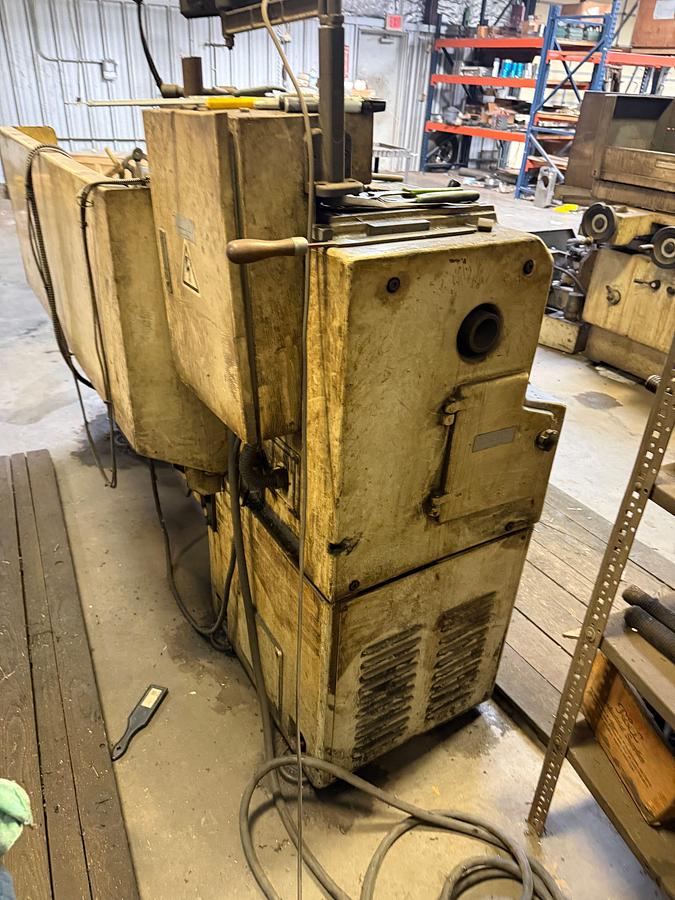

1999 BIRMINGHAM NSL 16x40 HORIZONTAL LATHE

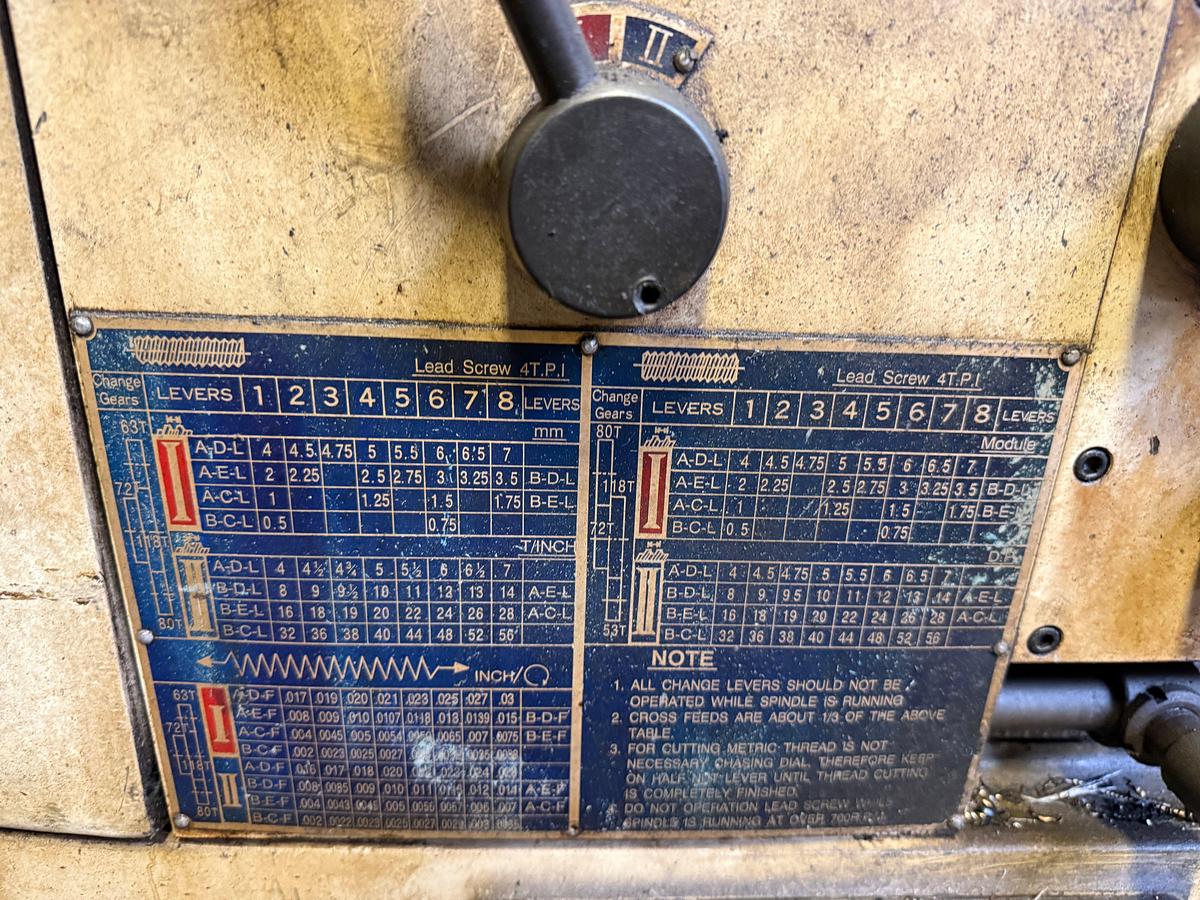

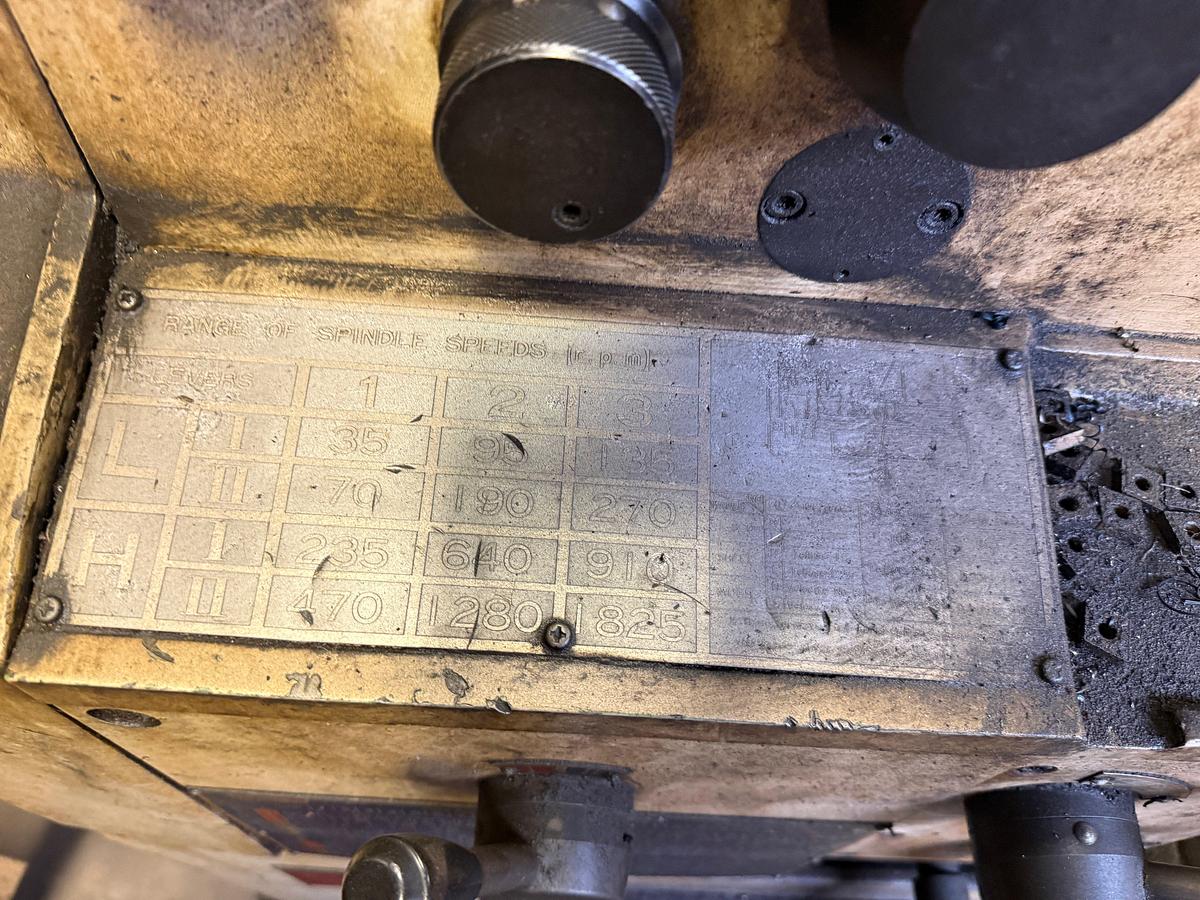

Max. swing over bed 16-1/8" Max length of workpiece 40" or 60" Max swing of carriage 8-13/16" Max swing in Gap 25-3/16" Width of bed 11-13/16" Spindle nose D1-6 Diameter of spindle thru bore 2-9/32" Taper of spindle center M.T.#6 Spindle speeds 25-2,000 RPM, 12 steps Longitude feeds .0011"-.633"/REV,42 kinds Cross feeds .00033"-.01837"/REV,42 kinds Metric threads 0.1-14mm,41 kinds Inch threads 112-TPI,60 kinds Module threads 0.1-7mm,34 kinds Diamentral pitch threads 112-4DP, 50 kinds Max. travel of cross slide 12-3/16 Max. travel of top slide 5" Diameter of tailstock quill 2-3/8" Taper of tailstock quill center M.T. #4 Max.travel of tailstock quill 4-13/16 Net weight 4100(16"X40") 5100(16"X60") NOTE: (BUYER IS RESPONSIBLE FOR REMOVAL, LOADOUT, & LOGISTICS... MUST CALL TO SCHEDULE & COORDINATE W/ YARD CONTACT FOR APPROVAL!! IF LOTS ARE NOT REMOVED WITHIN 14-DAYS OF AUCTION THEN ARRANGEMENTS NEED TO BE MADE & APPROVED FOR AN EXTENSION GRACE PERIOD. AFTER 30 DAYS LOTS ARE CONSIDERED ABANDONED & ANY MONIES PAID WILL BE RETAINED BY SELLER, UNLESS OTHERWISE AGREED UPON ARRANGEMENTS WITH BOTH PARTIES!)

---
